High-Performance Closed Loop CO2 Extraction Equipment
Discover the pinnacle of purity with Root Sciences’ industrial CO2 extraction equipment. Renowned for being one of the safest and most immaculate extraction methods, carbon dioxide uniquely acts as a solvent under specific temperatures and pressures. With our state-of-the-art CO2 extraction technology, harness the power to efficiently extract CBD, THC, and other coveted cannabinoids from hemp and cannabis, all while preserving the essential terpenes inherent in the plant.
Supercritical CO2 Extraction Equipment Offerings
Commercial Scale
Introducing the CDMH.5-2X-2F, our most compact closed-loop supercritical CO2 system, designed for small-scale production, research, and labs. Boasting a 10-liter combined capacity across two extraction vessels, each can accommodate 1 – 4.4 lbs (0.45 – 2 kg). This efficient system, fueled by a hydraulic gas compressor pump, permits parallel vessel operation for optimized flow rates.
Discover the CDMH.10-2X-2F, our closed-loop supercritical CO2 system, perfect for start-ups, research, and labs. With a total capacity of 20 liters across two extraction vessels, each vessel holds 2 – 8.8 lbs (0.9 – 4 kg). It operates at a solvent range of 850-3500 psi (58.6-241.3 bar) and temperatures between 50°-140°F. Efficiency meets innovation as the system, powered by a hydraulic gas compressor pump, offers parallel operation, precision control, and swift extract harvesting.
Unveiling the CDMH.20-2X-2F, the pinnacle of our commercial CO2 extraction systems and our most sought-after unit. Built for exponential production growth, it boasts a whopping 40-liter combined capacity over two extraction vessels, each designed to hold 4 – 17.6 lbs (1.8 – 8 kg). Powered by a hydraulic gas compressor pump, it offers the versatility of parallel vessel operation for maximized flow rates.
Industrial Scale
Revolutionize your botanical oil production with the CDMH.50-2X-2F, an industry-leading closed-loop CO2 extractor known for its high-performance supercritical extraction. This equipment offers the best flow rates and reliability available, delivering high-quality, shelf-ready botanical oils through precise temperature, high pressure, and advanced automated processes. Its completely closed loop design ensures a contaminant-free environment and consistent temperature control, achieving over 90% CO2 recovery.

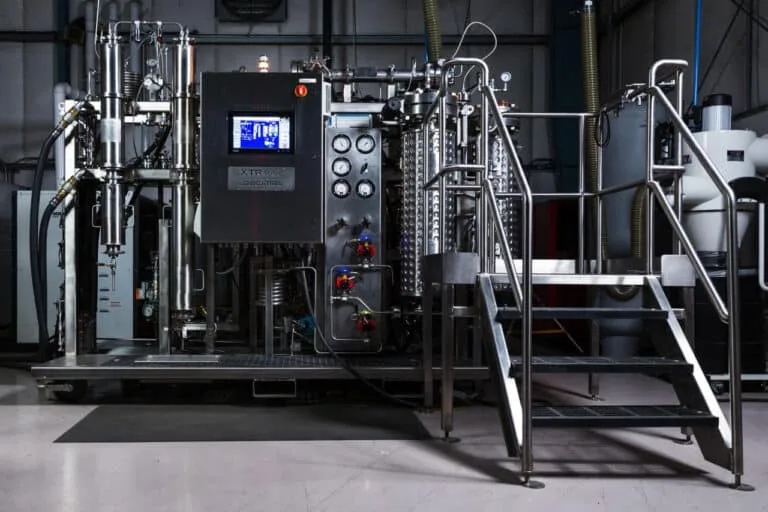

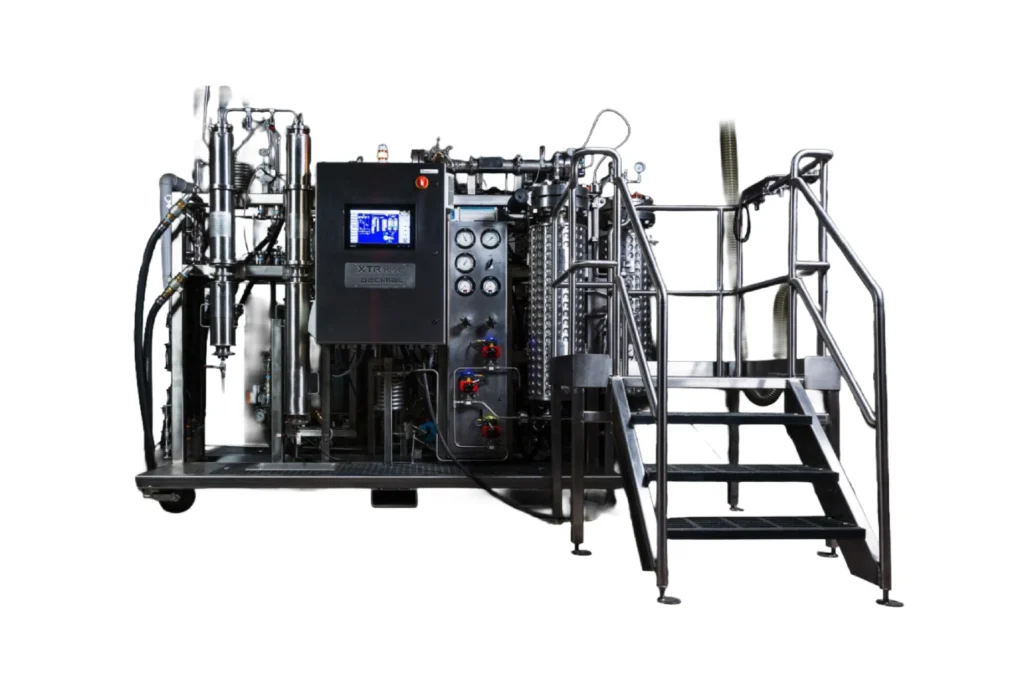

Elevate your medium to large scale production with the CDMH.100-2X-2F, a standout in our lineup of industrial-scale, closed-loop supercritical CO2 extraction systems. This robust system is tailored for efficiency, featuring two extraction vessels and two expansion chambers, all driven by a custom hydraulic gas compressor pump. Its versatile design allows for single or parallel vessel operation, optimizing flow rates and enabling simultaneous preparation and extraction processes.
Meet the CDMH.200-2X-2F, the largest and most advanced system in our lineup of industrial-scale closed-loop supercritical CO2 extraction systems, tailored for large scale production. Equipped with two extraction vessels and two expansion chambers, and powered by a custom hydraulic gas compressor pump, this system allows for efficient operation of one or both vessels in parallel, maximizing flow rates and operational flexibility.
| Model | CDMH.5-2x-2f |
CDMH.10-2x-2f |
CDMH.20-2x-2f |
|---|---|---|---|
| Capacity | .45 – 2 kg |
.9 – 4 kg |
1.8 – 8 kg |
| Max Flow Rate | 1.4 kg/min ± 5% |
2.4 kg/min ± 5% |
4 kg/min ± 5% |
| Dimensions (LxWxH) | 7.2′ x 3.3′ x 7.3′ |
7.2′ x 3.3′ x 7.3′ |
7.2′ x 3.5′ x 7.3′ |
| Electrical Requirements | 200-230 V, 50/60 Hz, 1 φ |
200-230 V, 50/60 Hz, 1 φ |
200-230 V, 50/60 Hz, 1 φ |
CO2 extraction is a cutting-edge, eco-friendly technique extensively utilized in the cannabis and hemp sectors to isolate premium cannabinoids, terpenes, and essential compounds. This advanced method employs supercritical carbon dioxide (CO2) as a solvent, celebrated for its efficiency, safety, and the high purity of the extract it produces.
How Does CO2 Extraction Work?
The process capitalizes on carbon dioxide pressurized to a supercritical state, blurring the lines between liquid and gas. This supercritical CO2 can thoroughly permeate plant material, dissolving and isolating targeted compounds effectively. The precision control of the extraction parameters allows for the selective extraction of desired components, ensuring the integrity of the cannabinoid and terpene profiles and leading to superior quality products.
Here are some key benefits of using CO2 extraction for cannabis and hemp processing.
- Safety and Purity: Utilizing non-toxic CO2 ensures that the extract is free from harmful residues, guaranteeing a safe, high-quality end product.
- Eco-Friendly: CO2 extraction is a green technology, often employing recycled CO2, which aligns with sustainability goals.
- Versatility: The method offers adjustable settings to cater to different extraction needs, facilitating a broad spectrum of product formulations.
- Quality Preservation: It gently extracts essential compounds, preserving the natural flavors and effectiveness of the final product.
Root Sciences’ CO2 Extraction Equipment
Root Sciences stands at the forefront of CO2 extraction technology. Our state-of-the-art CO2 extraction machines are specifically designed for the cannabis and hemp industries, emphasizing efficiency, reliability, and scalability. With our advanced machines, producers can achieve unmatched purity and potency, creating diverse, high-demand products.
Root Sciences’ extraction solutions cater to businesses of all sizes, supporting your growth with high-performance equipment that meets the dynamic needs of the market. Leverage Root Sciences’ expertise to harness the full potential of CO2 extraction, turning raw cannabis and hemp into premium, ready-to-market products.
